Foundation Drill Rigs

Rigs Available for Sale, Rent, or Rental Purchase

Our equipment rentals have powered projects across the country, from remote job sites to major metropolitan areas. Each point on the map represents real project locations our equipment has been. No matter where your next project takes you, we have the capability to serve you. Explore this map and our equipment below to see the scale of our rental nationwide services.

RENT A DRILL RIG TODAY
RENT A DRILL RIG TODAY

Enhance your drilling projects with our selection of Bay Shore Systems and HPM foundation drilling equipment. At Rig-Rents, we understand the complexities of low-overhead and tight-access drilling projects. To address these challenges, we offer a tailored selection of TR series drill rigs for rent, renowned for their compact design and exceptional performance in confined spaces.

CLICK ON RIG INFO CARD TO VIEW MORE INFORMATION

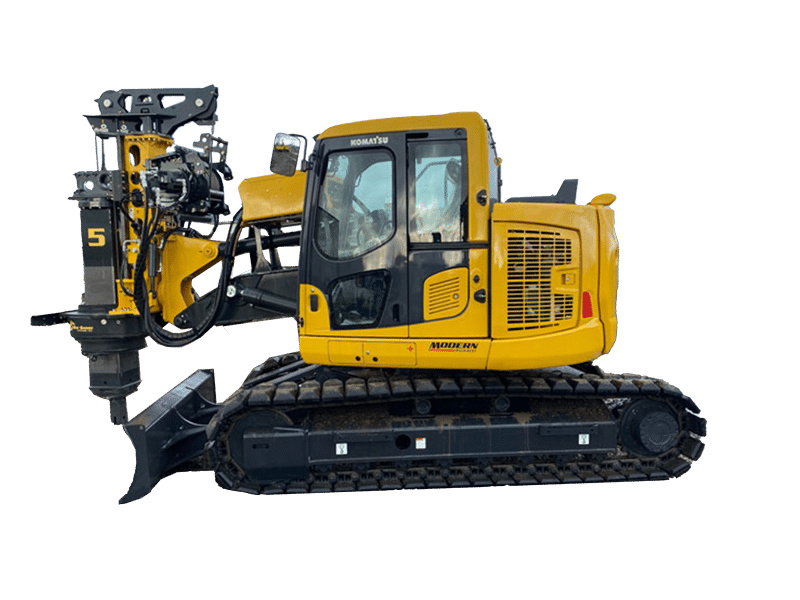

SuperShort No Background

TR25 SUPERSHORT

ROTARY TORQUE - 25,000 FT-LBF
DRILL DEPTH - 32 FT
CROWD STROKE - 42 IN
CROWD FORCE - 24,500 LBF
KELLY WINCH - 15,000 LBF
NO SERVICE WINCH
TOTAL WEIGHT - 45,500 LB

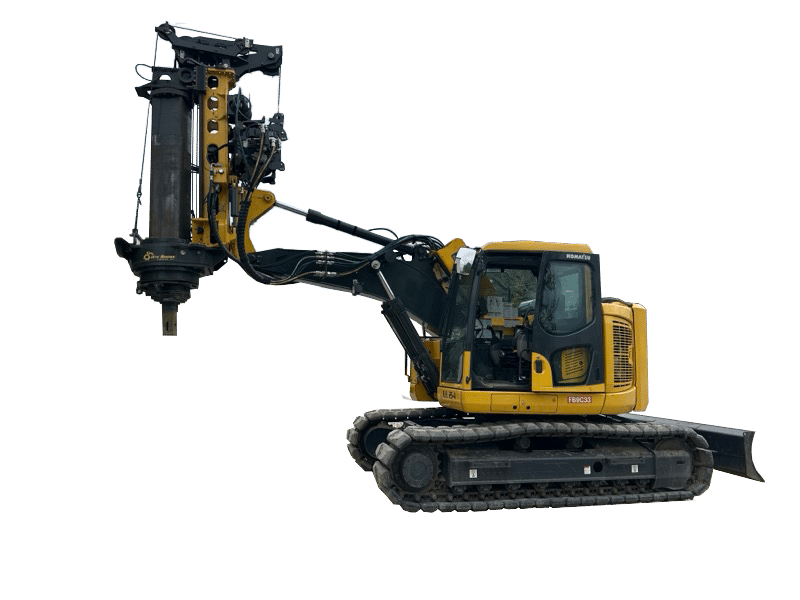

TR25LO (cutout)

TR25 | TR25LO

ROTARY TORQUE - 25,000 FT-LBF
DRILL DEPTH - 55 FT | 50 FT
CROWD STROKE - 96 IN | 60 IN
CROWD FORCE - 24,500 LBF
KELLY WINCH - 18,000 LBF
SERVICE WINCH - 4,500 LBF
TOTAL WEIGHT - 61,200 LB

TR25LO (cutout)

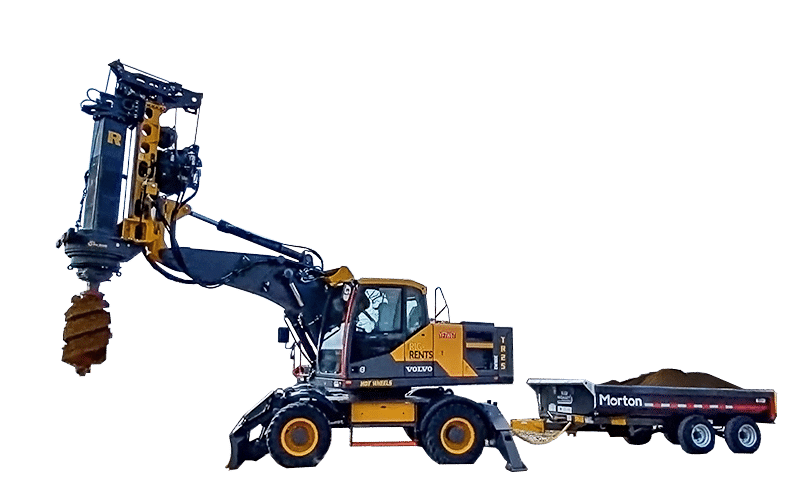

TR25 Wheeled Excavator

TR25 WHEELED

ROTARY TORQUE - 25,000 FT-LBF
DRILL DEPTH - 43 FT
CROWD STROKE - 60 IN
CROWD FORCE - 24,500 LBF
KELLY WINCH - 18,000 LBF
SERVICE WINCH - 4,500 LBF
TOTAL WEIGHT - 64,800 LB

TR40-DBL-CUTOUT-800x600

TR40

ROTARY TORQUE - 43,000 FT-LBF
DRILL DEPTH - 50 FT
CROWD STROKE - 140 IN
CROWD FORCE - 20,000 LBF
KELLY WINCH - 18,000 LBF
SERVICE WINCH - 4,500 LBF
TOTAL WEIGHT - 69,250 LB

TR40-DBL-CUTOUT-800x600
HPM B55 For Rent

HPM 55B

ROTARY TORQUE - 56,000 FT-LBF
DRILL DEPTH -  61 FT
DRILL DIAMETER - 9'
CROWD STROKE - 162 IN
CROWD FORCE - 23,150 LBF
KELLY WINCH - 22,000 LBF
TOTAL WEIGHT - 56,200 LB

TR50-(side-no-back)
TR60 Drill RIg

HPM 55B

ROTARY TORQUE - 56,000 FT-LBF
DRILL DEPTH -  61 FT
DRILL DIAMETER - 9'
CROWD STROKE - 162 IN
CROWD FORCE - 23,150 LBF
KELLY WINCH - 22,000 LBF
TOTAL WEIGHT - 56,200 LB

TR50 | TR50LO

ROTARY TORQUE - 50,000 FT-LBF
DRILL DEPTH -  48 FT / 63 FT | 42 FT
CROWD STROKE - 140 IN
CROWD FORCE - 24,000 LBF
KELLY WINCH - 25,000 LBF
SERVICE WINCH - 8,000 LBF
TOTAL WEIGHT - 73,500 LB

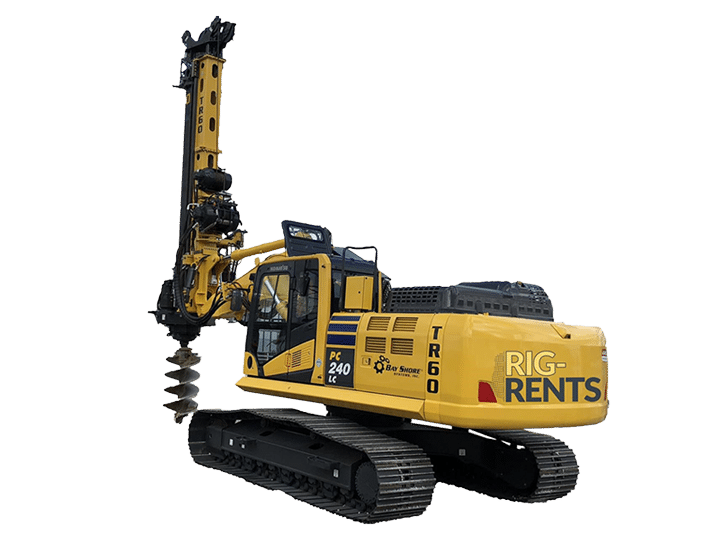

TR60 Drill RIg

TR60 | TR60LO

ROTARY TORQUE - 66,000 FT-LBF
DRILL DEPTH -  60 FT | 41 FT
CROWD STROKE - 140 IN | 96 IN
CROWD FORCE - 27,500 LBF
KELLY WINCH - 30,000 LBF
SERVICE WINCH - 12,000 LBF
TOTAL WEIGHT - 93,800 LB

TR50 | TR50LO

ROTARY TORQUE - 50,000 FT-LBF
DRILL DEPTH -  48 FT / 63 FT | 42 FT
CROWD STROKE - 140 IN
CROWD FORCE - 24,000 LBF
KELLY WINCH - 25,000 LBF
SERVICE WINCH - 8,000 LBF
TOTAL WEIGHT - 73,500 LB

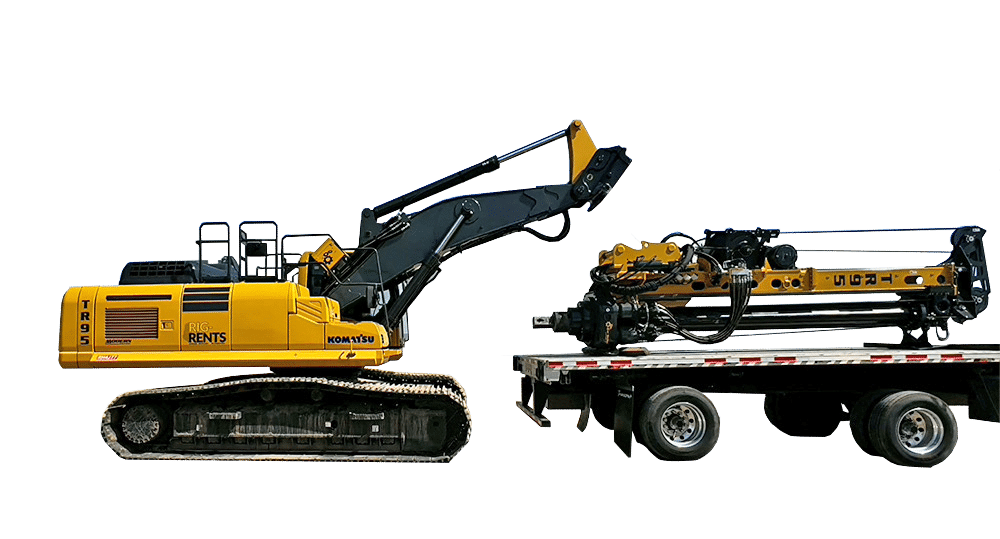

TR95 Quick Dock Attachment

TR95 QUICK DOCK

ROTARY TORQUE - 98,000 FT-LBF
DRILL DEPTH -  53 FT
CROWD STROKE - 168IN
CROWD FORCE - 35,000 LBF
KELLY WINCH - 30,000 LBF
SERVICE WINCH - 12,000 LBF
EXACAVATOR WT. - 79,200 LB
ATTACHMENT WT. - 20,100 LB

ALLOWS TRANSPORTATION ON A 5-AXLE WITH SUPPORT LOAD

TR50-(side-no-back)
TR95 Quick Dock Attachment

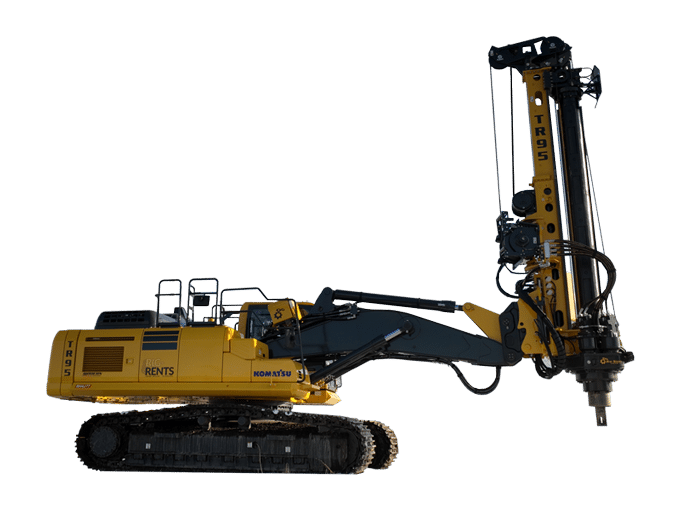

TR95 Drill Rig
TR95 Drill Rig

TR95

ROTARY TORQUE - 98,000 FT-LBF
DRILL DEPTH -  53 FT
CROWD STROKE - 168IN
CROWD FORCE - 35,000 LBF
KELLY WINCH - 30,000 LBF
SERVICE WINCH - 12,000 LBF
TOTAL WEIGHT - 124,205 LB

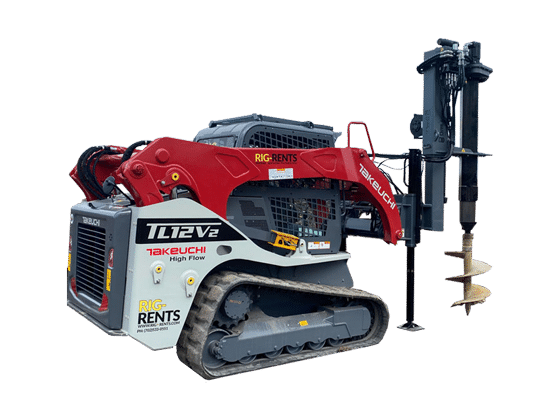

Drill Sergeant Drill Rig

DRILL SERGEANT

ROTARY TORQUE - 8,000 FT-LBF
MAX AUGER SIZE - 36IN
CROWD STROKE - 20 IN
CROWD FORCE - 3,500 LBF
KELLY WINCH - 4,500 LBF
TOTAL WEIGHT - 15,300 LB

Drill Sergeant Drill Rig

Get in touch with us today, and we'll help you find the best foundation equipment and tooling for your upcoming projects!
