Rigs for Rent

Why buy when you can rent? Rig Rents offers all of the most popular and reliable TR model hydraulic drilling rigs in the industry, the TR25 Supershort, TR25, TR40, TR50, TR60, and TR95. Manufactured by Bay Shore Systems, these rigs offer incredible performance and power.

Rent from Rig Rents and cut days or even weeks off your project timeline—transporting the TR25 Supershort, TR25, TR40, TR50, TR60 and TR95 doesn’t require special permitting or the use of 9-axle trucks. We’ll get you the drill you need, when you need it.

TR40-DBL-CUTOUT-800x600

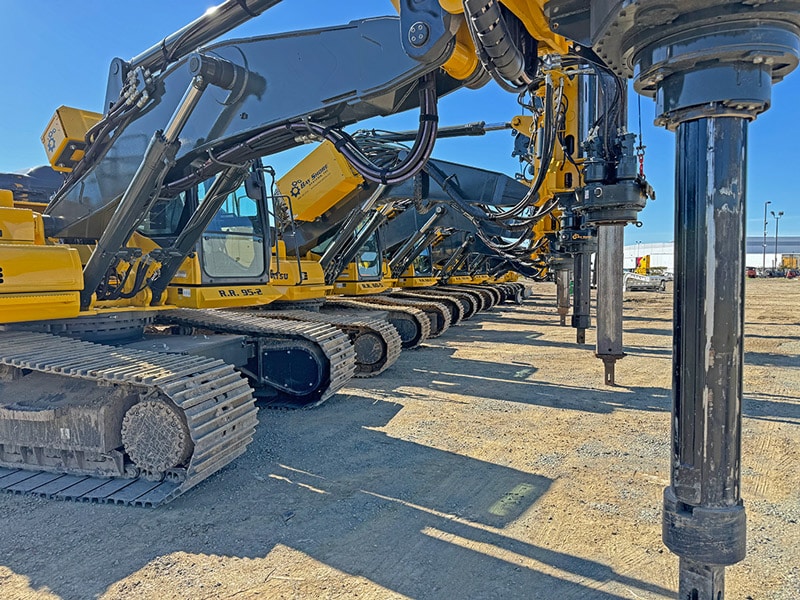

CURRENTLY AVAILABLE IN OUR FLEET

Rig Rents Drills available
Drill-Sergeant-800x600

READY FOR IMMEDIATE TRANSPORT TO YOUR JOB.

FOR SALE, FOR RENT, OR RENTAL PURCHASE

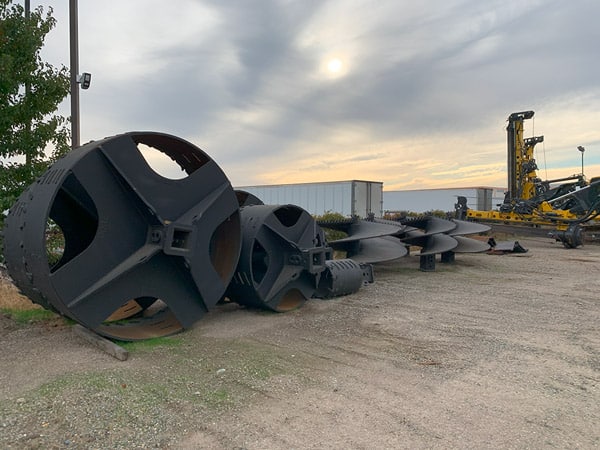

TOOLING RENTAL NATIONWIDE

5" and 8" KELLY BOX SIZES AVAILABLE

12" - 120" DIRT AND ROCK AUGERS

16" - 72" CORE BARRELS

22" - 54" CLEAN-OUT BUCKETS

CASING 24" THROUGH 86"
CASING TWISTERS
KELLY EXTENSIONS
KELLY BOX ADAPTERS

OUR TOOLING IS READY TO BE SHIPPED TO ANY JOBSITE

RENT TOOLING NOW
Tooling-Transport-800x600

AVAILABLE DRILL RIGS FOR RENT

TR25 Supershort

  • 42" Crowd Stroke
  • 32 ft standard square Kelly Bar length
  • 45,500 lb transport weight

TR25

  • 25,000 ft-lbs of Rotary torque
  • 24,500 lb Crowd Force
  • 60" Crowd Stroke
  • 18,000 lb Kelly Winch line pull
  • 43ft standard square Kelly Bar length
  • 51,500 lb transport weight

TR40

  • 43,000 ft-lbs of Rotary torque
  • 20,000 lb Crowd Force
  • 140" Crowd Stroke
  • 25,000 lb Kelly Winch line pull
  • 63ft standard square Kelly Bar length
  • 57,750 lb transport weight

TR50

  • 50,000 ft-lbs of Rotary torque
  • 24,000 lb Crowd Force
  • 140" Crowd Stroke
  • 25,000 lb Kelly Winch line pull
  • 50ft standard square Kelly Bar length
  • 61,000 lb transport weight

TR60

  • 66,000 ft-lbs of Rotary torque
  • 27,500 lb Crowd Force
  • 140" Crowd Stroke
  • 25,000 lb Kelly Winch line pull
  • 63ft standard square Kelly Bar length
  • 61,000 lb transport weight

TR95

  • 98,000 ft-lbs of Rotary torque
  • 35,000 lb Crowd Force
  • 168" Crowd Stroke
  • 30,000 lb Kelly Winch line pull
  • 60ft standard square Kelly Bar length
  • 105,000 lb transport weight



TR25_800x600
TR40_800x600
TR25-Supershort-2_800x600

Drill Sergeant

  • 8,00 ft-lbs of Rotary torque
  • 3,500 lb Crowd Force
  • 4,500 lb Kelly Winch line pull
  • 20" Crowd Stroke
  • 25 ft standard square Kelly Bar length
  • 3,100 lb attachment weight
  • 12,200 lb transport weight

Options for All Machines

  • Extra-Low Overhead Clearance
  • Round Locking Kelly Bar (RLK)
  • Power Line Detector
  • Rubber Track Plates

Volvo EW180

  • Available May, 2023

YouTube Video UCsANT-BEFkXdgG6gSvgP80A_Iam9KvsG0jg In this video we will go over the basic operations of of the joysticks on the TR Series machines.
In this video we will go over the basic operations of of the joysticks on the TR Series machines.
The TR60 drill rig is ideal for demanding jobs that require serious power. Using the TR60 produces significant savings in terms of both cost and time.
Rig Rents has all your Tooling needs.  From 12" to 120" Rock & Dirt Augers, Core Barrels, Clean out Buckets and Digging Buckets.  We Have Adapters, Casing Twisters.  Tooling Box sizes from 4" to 8" .  Call us to get your next tool rented.
Load More... Subscribe
When Renting any of our equipment you can rest ass When Renting any of our equipment you can rest assured that you are getting a fully serviced and ready to work machine when it arrives at your job site.  Every machine is serviced anywhere in the country at 500hr intervals. All Fluids are sampled and tested also. #rigrents #drilljunkies #bayshoresystems #komatsucare #roadmachinery #foundationdrilling #equipmentrental
Here is a peak 👀 at just some of our tooling we Here is a peak 👀 at just some of our tooling we have available for rent.  16” to 108” Rock, Dirt and Core Barrels, Clean outs, adapters, casing... #rigrents #toolingrental #drilljunkies #championtools
Changing out from a Square kelly, to this Round Lo Changing out from a Square kelly, to this Round Locking Kelly. We have both options available for all of our machines!! #drillrigs #bayshoresystems #kellybardrilling #drilljunkies #rigrents
Load More... Follow on Instagram

Get in touch with us today, and we'll help you find the best equipment to achieve your drilling job!
